CASE 01
Complex CNC Milled Housing
Complex geometry, multi-face machining and dimensional inspection.
CNC MACHINING CASE STUDIES
Real CNC Machining Projects from Process Planning to Inspection
Explore representative YCS projects covering complex housings, repeat-production components and liquid cold plates. Each case shows the machining route, production challenge and inspection approach without publishing confidential customer data.
FEATURED PROJECTS
Featured CNC Machining Cases
Three project groups showing complex milling, repeat production and internal-channel machining.
CASE 01
Complex CNC Milled Housing
| Component | Complex machined housing |
|---|---|
| Material | Not disclosed |
| Process | CNC milling |
| Order quantity | Not disclosed |
| Tolerance | Controlled to customer drawing |
| Inspection | Dimensional inspection |
Customer Requirement

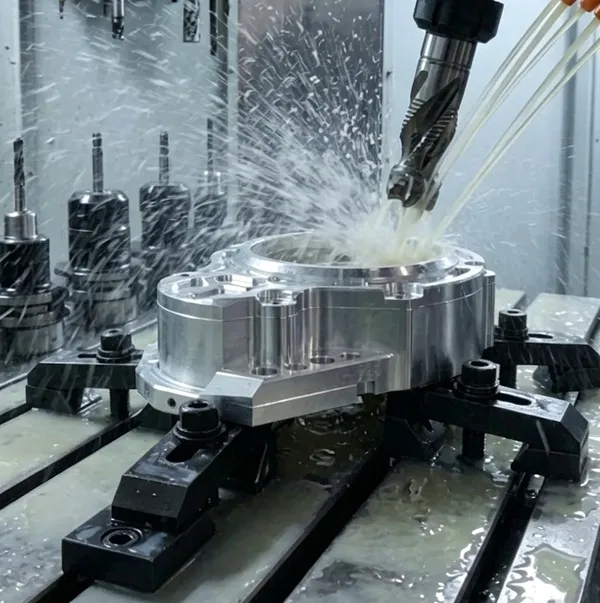

The part required a complex housing geometry with machined cavities, multiple functional faces, mounting features and interfaces defined by the customer drawing.
Manufacturing Challenge
Large material removal and multi-face machining require a controlled setup and cutting sequence to preserve feature relationships throughout production.
Process Route
The drawing was reviewed to identify functional datums and critical interfaces before roughing and finishing operations were planned.
Inspection

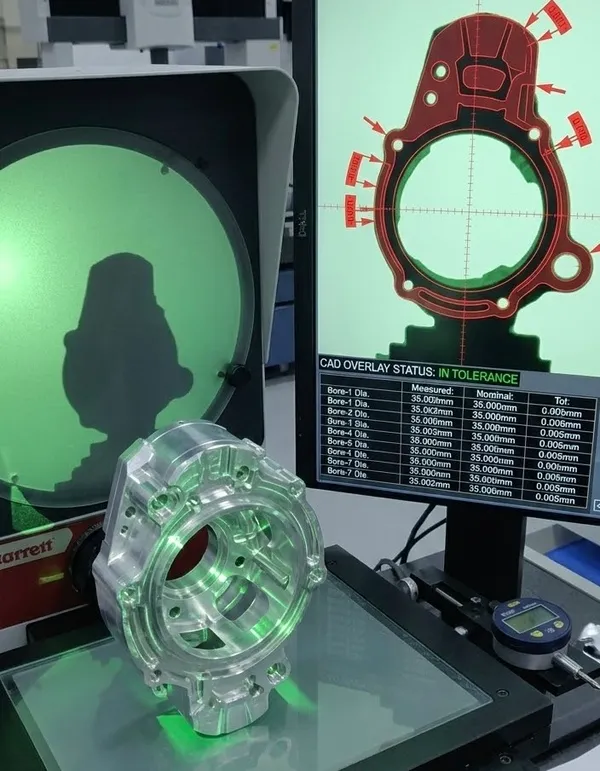

The finished housing was checked against drawing-defined dimensions and interface relationships using suitable dimensional measurement equipment.
Result

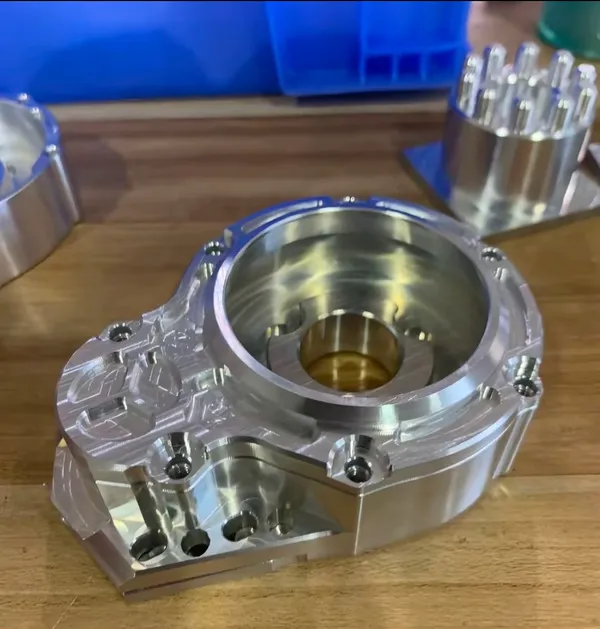

The case demonstrates a controlled route for complex housing machining combining cavity milling, multi-face features and dimensional verification.
Need a complex machined housing? Send your drawing for manufacturing review.
Have a similar housing project or a custom drawing to review?
Contact YCS →
CASE 02
Repeat-Production CNC Components
| Component | Repeat-production machined components |
|---|---|
| Material | Aluminum |
| Process | CNC machining with repeatable workholding |
| Batch size | Not disclosed |
| Tolerance | Controlled to customer drawing |
| Inspection | CMM dimensional inspection |

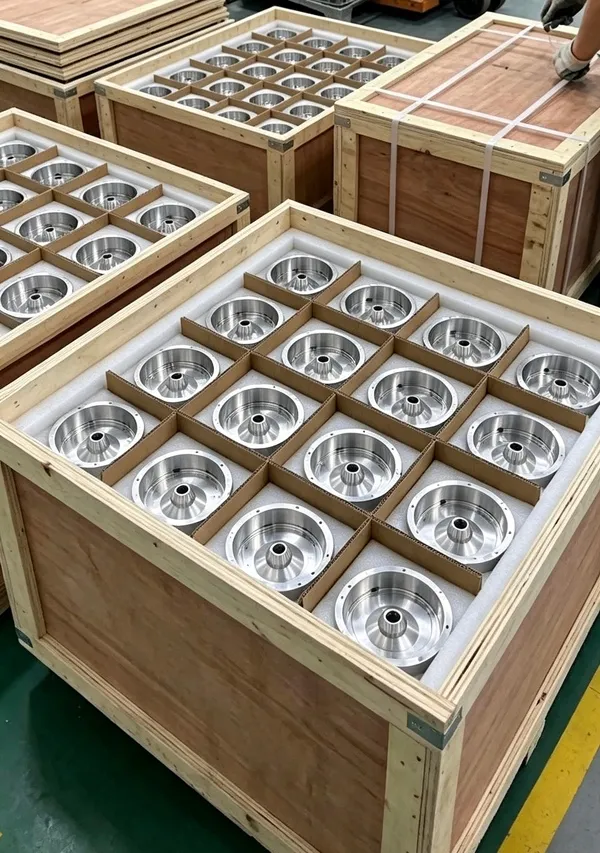

| Packaging | Protected export packaging |
Customer Requirement

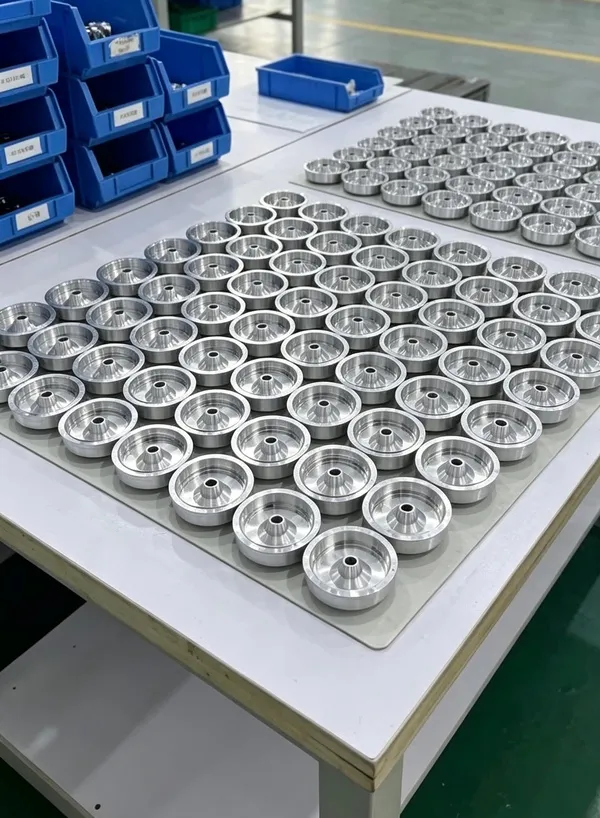

The project required repeated production of the same component family with consistent machining and controlled inspection across batches.
Manufacturing Challenge
Workholding position, tool condition, offsets and inspection checkpoints must remain controlled beyond the first acceptable part.
Process Route

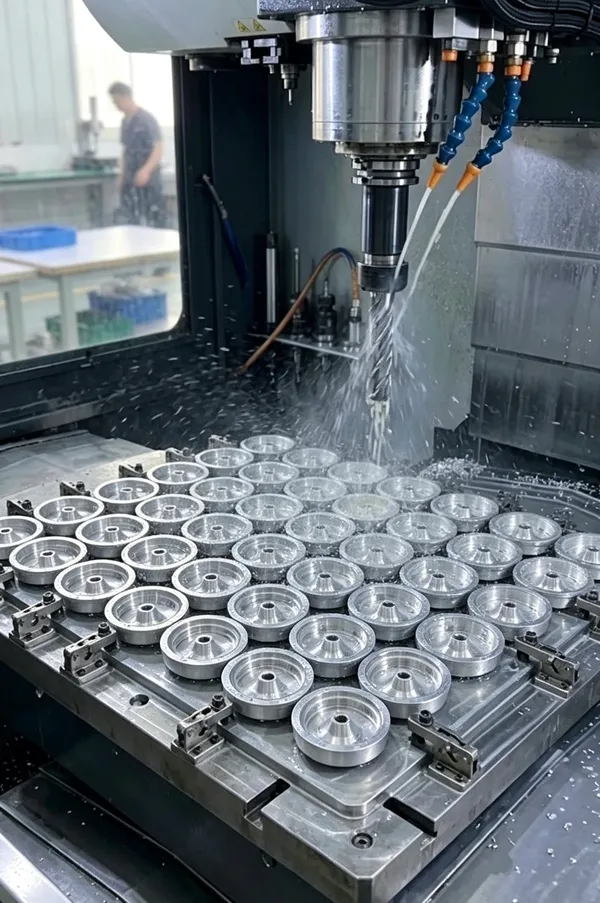

Multiple components were machined using a repeatable production setup organized around the controlled drawing revision.
Inspection

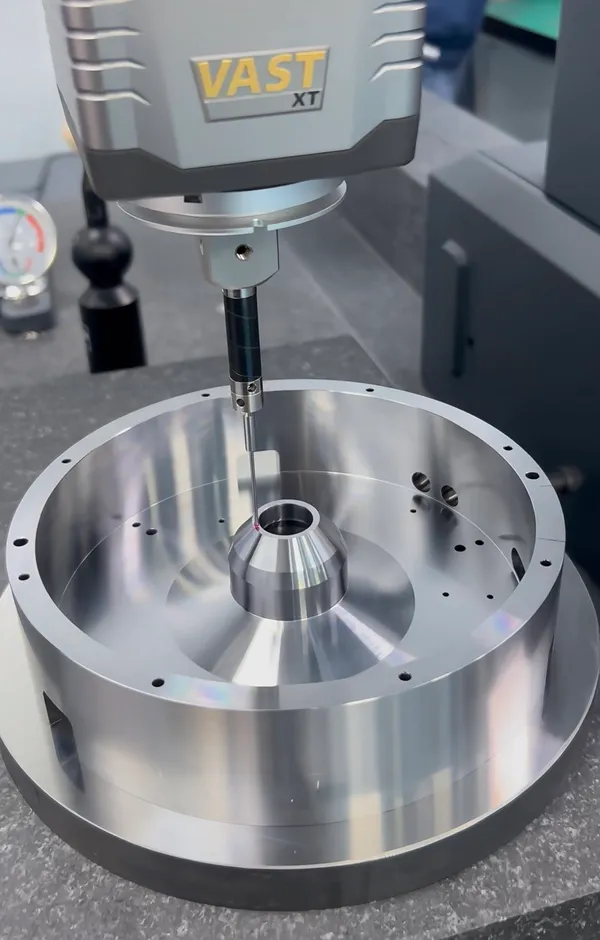

The project used CMM dimensional inspection for the relevant component features, supporting verification before release.
Result
The case connects repeatable machining, project-specific dimensional verification and protected export packaging in one production workflow.
Planning repeat production? Share your drawing and expected batch demand.
Planning repeat production or a new batch project?
Contact YCS →
CASE 03
CNC Machined Liquid Cold Plate
| Component | Liquid cold plate |
|---|---|
| Material | Not disclosed |
| Process | CNC channel machining |
| Order quantity | Not disclosed |
| Critical features | Internal channels, sealing interfaces and connection features |
| Tolerance | Controlled to customer drawing |
| Inspection | Dimensional inspection |
Customer Requirement

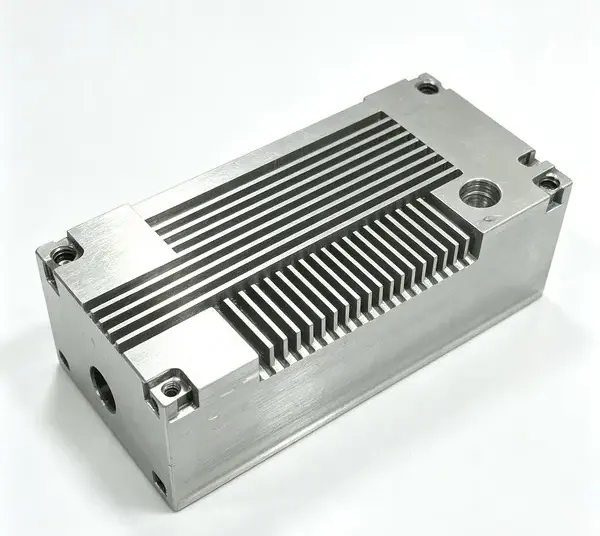

The component required internal cooling-channel geometry together with machined sealing and interface features defined by the customer drawing.
Manufacturing Challenge
Cold-plate machining requires careful control of internal channel geometry, burrs, sealing surfaces and feature relationships.
Process Route

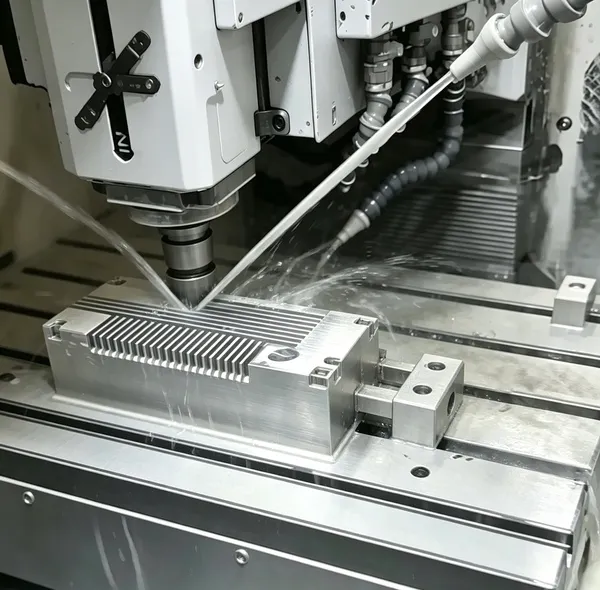

The machining sequence was planned around the channel layout, sealing interfaces and connection features while protecting completed functional surfaces.
Inspection
The finished cold plate was checked against the drawing, focusing on relevant interfaces, hole locations and directly measurable channel-related geometry.
Result

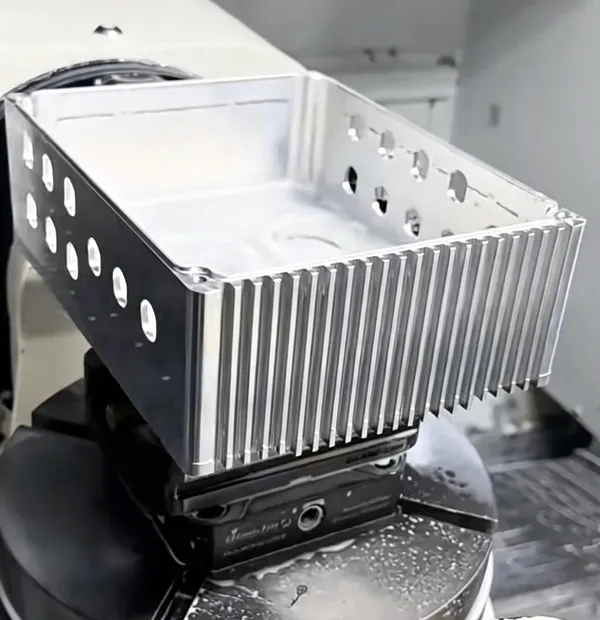

The project demonstrates CNC machining capability for liquid cold plates and other thermal-management parts with internal flow-channel features.
Have a cold-plate or thermal-management drawing? Send it for manufacturing review.
Working on a cold plate or thermal-management component?
Contact YCS →
MORE PROJECT PHOTOS
Additional CNC Machining Project Examples

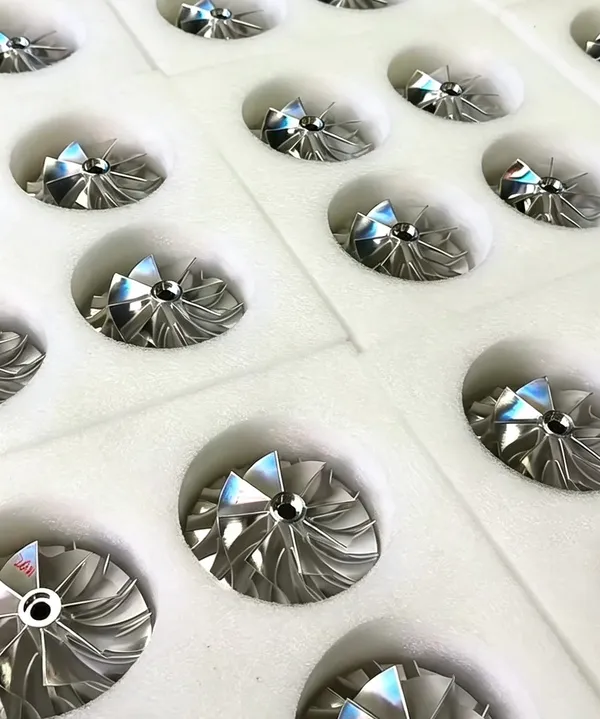

Additional project photos show other part geometries and production types without publishing unconfirmed grades, tolerances or customer information.
DISCUSS YOUR CNC PROJECT
Send Your Drawing for Manufacturing Review
Upload your 2D drawing or 3D model and include material, quantity, tolerance, finishing, inspection and delivery requirements.
